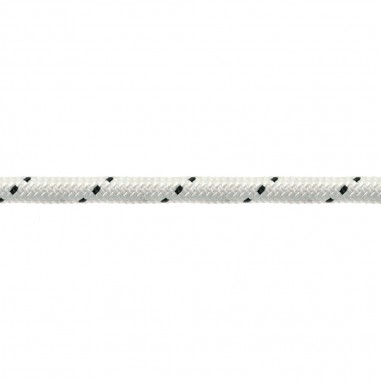

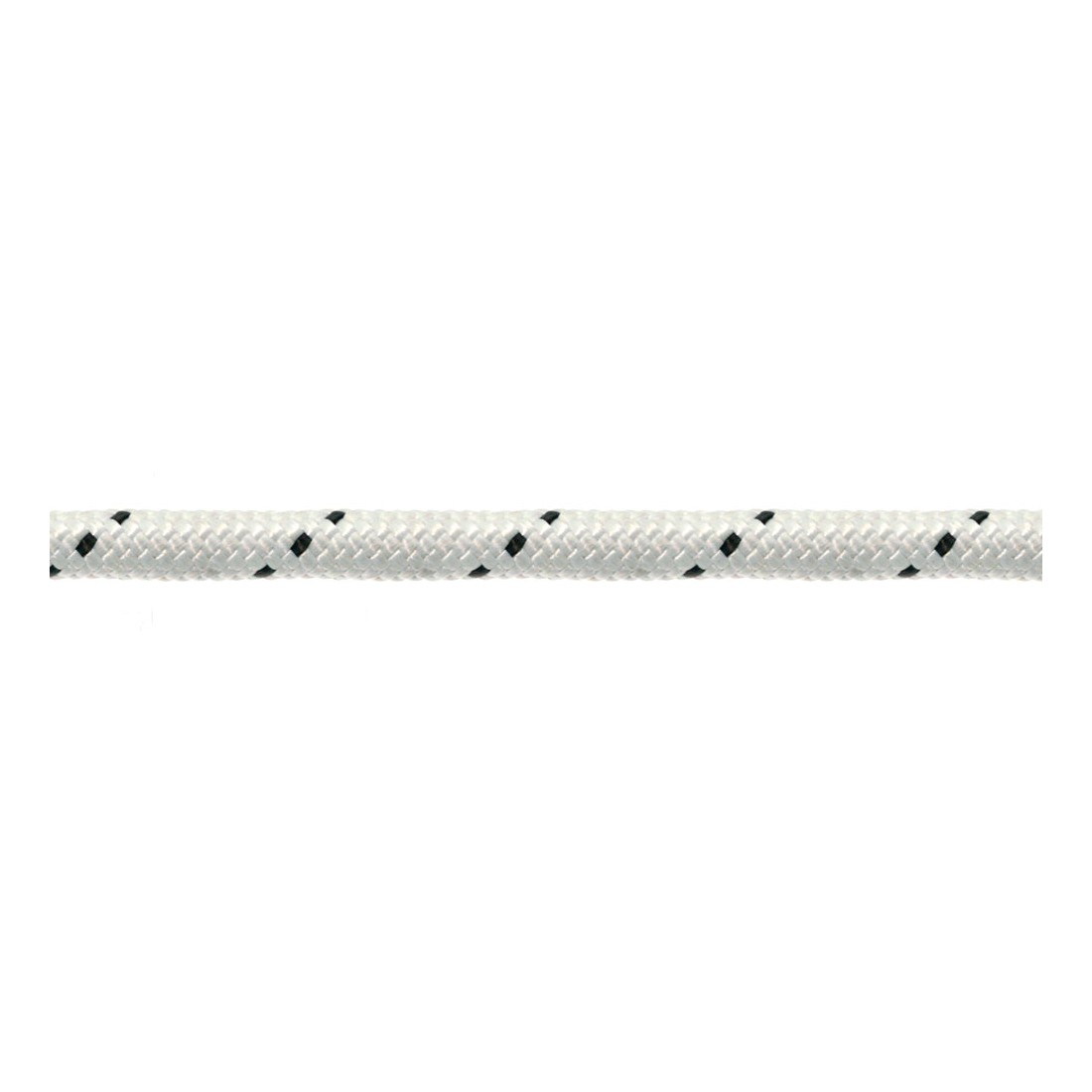

Standard Braid - Blister Packaging

TS8X20BLS
Diameter in mm
  • 4
  • 6
  • 8
  • 10

Description

Code TS4 TS5 TS6 TS7 TS8 TS10 TS12 TS14
Ømm 4 5 6 7 8 10 12 14
Weight gr/mt 18 25 33 44 60 85 120 155
Breaking load kg 250 360 500 750 850 1200 1900 2200
Meter per spool 500 350 300 350 300 200 250 200
Weight per spool 9 8.5 10 15.5 18 17 30 31

Code TS16 TS18 TS20 TS22 TS24 TS26 TS28 TS30
Ømm 16 18 20 22 24 26 28 30
Weight gr/mt 215 280 320 375 420 490 600 640
Breaking load kg 2800 3100 3900 4850 6000 7500 9300 10500
Meter per spool 150 100 100 100 100 100 100 100
Weight per spool 32 28 32 37.5 42 49 60 64

Product Details

Compositions
Semi-gloss polyester yarn. Core in Polyester
Color
White with marker
Twisting
Island type from 4 to 10mm at 16 Spindles, from 12 to 30mm at 24 Spindles
Applications
All use
